Small but tough!

Decalog – small in size, tough by nature. Built for tight spaces and harsh environments.

4G
4G
CAN 2.0
CAN 2.0
CAN gateway
CAN gateway
GNSS, A-GPS 72 Channels
GNSS, A-GPS 72 Channels
Real-time monitoring and analysis
Real-time monitoring and analysis
UPS
UPS
512 Mb OnBoard memory storage
512 Mb OnBoard memory storage
3-axis accelerometer
3-axis accelerometer
Rugged enclosure
Rugged enclosure
High-voltage isolation
High-voltage isolation
Scripting module
Scripting module
Multifunctional I/0
Multifunctional I/0
IP67
IP67
Removable mounts
Removable mounts

CASE STUDY

TAE power solutions

To fast-track its breakthrough pulse charging technology toward commercialisation, TAE Power Solutions needed continuous 24/7 battery testing with zero tolerance for safety risks, data loss...

SPECIFICATIONS

Decalog Specifications

Rugged HV 4G Smart CAN Gateway for real-time cloud monitoring of eMobility fleets operating in harsh environments, from bikes to boats.

Weight
Approx. 300 g
Dimensions
122 x 95 x 25
IP-rating
IP67
Enclosure
Aluminium
CAN-ports
2x CAN 2.0
I/0
4x DI, 2x DO, 2x AI
Processor
ARM Cortex A9
Modem
4G catM (EU/US/AP)
Power
8 - 24 VDC
Part No.
DL

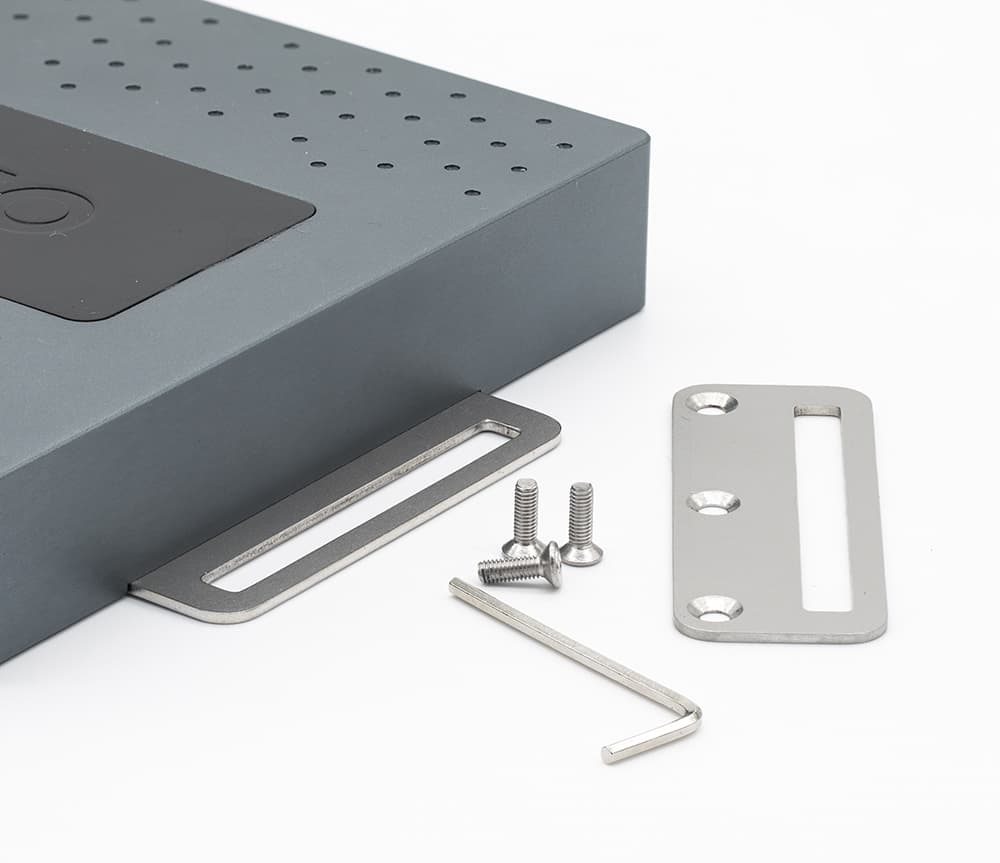

Flexible Mounts for Versatile Use

Our premium CAN bus loggers come with flexible mounting options as standard. Thanks to the built-in removable mounts, our hardware can be installed in a variety of ways. For more demanding environments, we offer a wide range of additional mounting solutions, which you can explore in our Accessories section.
